Voltmeters and ammeters, and other measuring instrument

Voltmeter/Ammeter VAR-M01-08 DIN-rail mounting
Амперметр/Вольтметр (вольтамперметр, ампервольтметр) на ДИН рейку ВАР-М01-08 АС20-450В
  • Measurement of RMS voltages and currents
  • Measuring power consumed by the load (from 03/01/2016)
  • Powered by the controlled voltage
  • Range of measuref voltage - AC20...450V, 45...65Hz
  • Non-contact measurement of current  - 0,5...63A, 45...65Hz
  • Accuracy class of voltage - 1,0; main voltage measurement accuracy, better than ± 1 unit LSB
  • Accuracy class of current - 2,0; main error the current measurement is better than ± 2 units LSB
  • Width of case is 35mm

Вольтамперметр ВАР-М02
  • Measurement of RMS voltage and current
  • Powered by the controlled voltage
  • Accuracy class of voltage - 1,0
  • Accuracy class of current - 2,0
  • Range of measurement of voltage - АС60...440V, 45...65Hz
  • Non-contact  measurement of current - 0...30A
  • Contact measurement of current - (0,0...1,0A, 0A, 0,0...5,0A)
  • Possibility to connect an external current transformer up to 1000A
  • The size - 1 module

Вольтметр ВР-М02
  • Powered by the controlled voltage
  • Wide range of measurement of voltage - AC60...440V, 45...70Hz
  • Accuracy class - 1,0
  • There are non-volatile memory maximum, minimum and the number of disconnections.

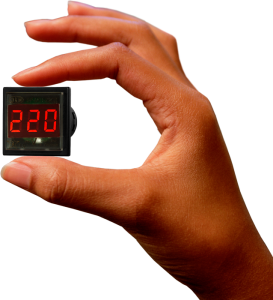

VR-M01-29SD in shield
Вольтметр цифровой миниатюрный щитовой ВР-М01-29СД
  • The smallest in its class, the size is 29,5*29,5mm
  • Powered by the controlled voltage
  • Wide range of measurement of voltage - AC15...450V, 45...400Hz
  • Accuracy class - 1,0

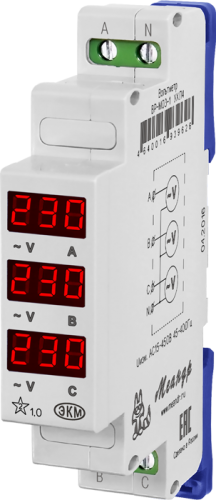

Voltmeter VR-M03 DIN-rail mounting
Вольтметр ВР-М03   Трёхфазный вольтметр ВР-М03-1
  • Three independent voltmeters in a single case. Measures phase and line voltages. Measures the voltage of three independent voltage sources.
  • Powered by the controlled voltage
  • Wide range of measurement of voltage - AC15...450V, 45...400Hz
  • Accuracy class - 1,0
  • Indication of low/high voltage at the input



more

Voltmeter VRT-M02 with function of monitoring short-circuit current
ВРТ-М02 мониторинг тока короткого замыкания и сопротивления цепи фаза-ноль

 The digital single-module voltmeter of direct connection (AC20...450V), combined with a measuring instrument of short-circuit current and resistance of chain phase-zero, and control of the state of the protective conductor PE.



more
